Automotive Industry (hot melt adhesive for automotive wire and filter)

Hot melt adhesive stick and adhesive pellets are used in the production of automotive wires and filters. Our self-developed formula improves the performance of hot melt adhesives by increasing their heat, oil, and weather resistance while simultaneously ensuring their viscosity, in order to meet the high demands of the automotive industry.

Applications
  • Bonding automotive wires

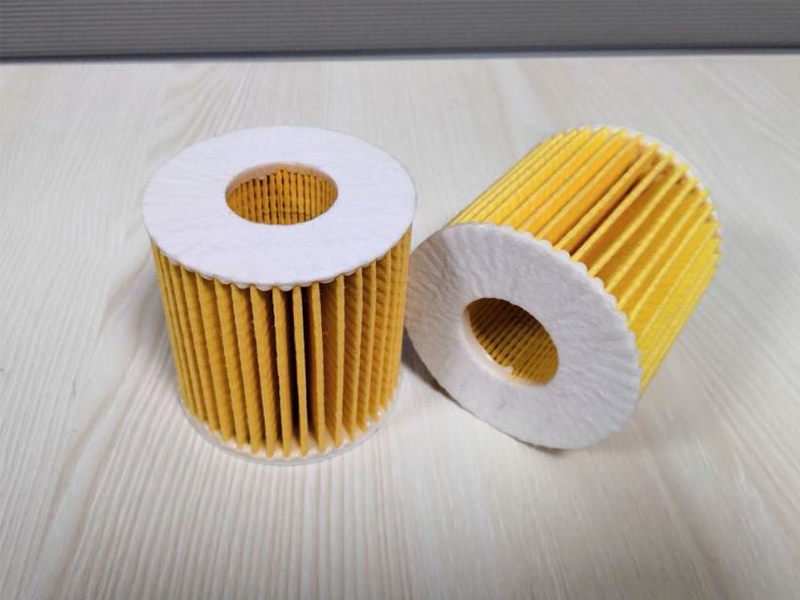

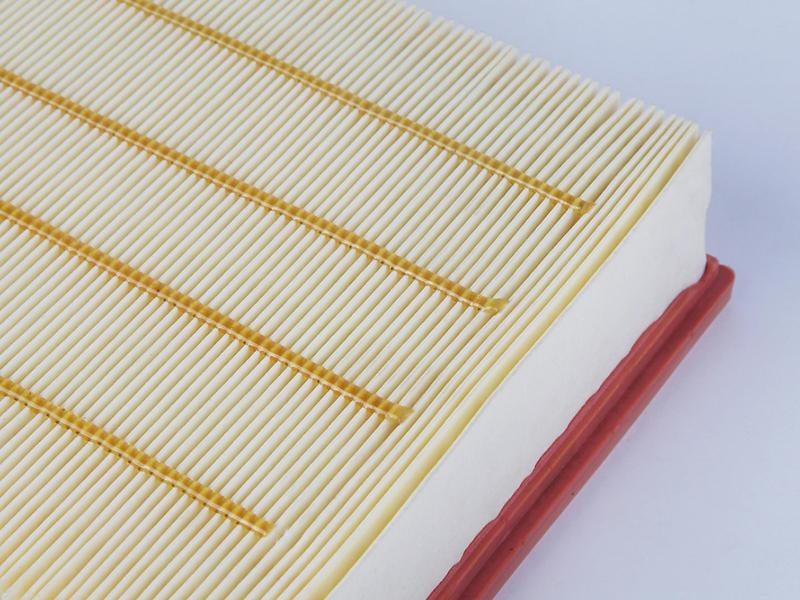

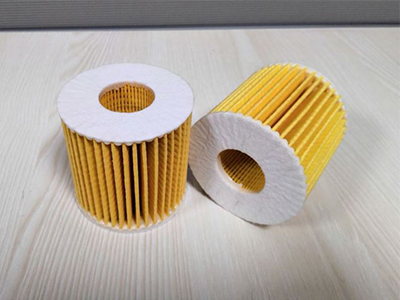

  • Bonding automotive filters
  • Bonding fabric to the roof of cars
  • Center console bonding
  • Automotive rear deck cover bonding
Examples
Recommended products

1. Hot melt adhesive stick
The following hot melt adhesive stick provides excellent temperature resistance, delivering a wide usable temperature range. This product is usually used to bond automotive wires, filters and interior trims.

Model 8120N 8150N
Appearance Yellow, transparent, stick Buff, transparent, stick
Viscosity 1800cps~3500cps/200℃ 2000cps~4000cps/200℃
Softening point 115℃~125℃ 145℃~155℃
Operation temperature 160℃~190℃ 190℃~210℃
Glass transition temperature 0℃ 0℃
Curing speed 3s~5s 5s~8s
Density 0.95g/cm3 0.95g/cm3
Acid value < 7mg(KOH)/g < 7mg(KOH)/g
Amine value < 3mg(HCL)/g < 3mg(HCL)/g
Weight/per 25kg/carton 25kg/carton

2. Hot melt adhesive pellets
SUNTIP can provide hot melt adhesive pellets made from PA, PO and other materials which are used to bond automotive wires, filters, car roofs, center consoles, and interior trims.

Model 8695M(low pressure molding) 8180GM 8180M

Material PA PA PA
Appearance Buff, transparent, pellet Buff, transparent, pellet Buff, transparent, pellet
Hardness / 95A 95A
Viscosity 2300cps~5000cps/200℃ 4000cps~8000cps/200℃ 4000cps~10000cps/200℃
Softening point 190℃ 175℃~185℃ 175℃~185℃
Operation temperature 230℃~260℃ 220℃~230℃ 220℃~230℃
Glass transition temperature -20℃ -8℃ -15℃
Curing speed 2s~3s 3s~5s 3s~5s
Density 0.95g/cm3 0.95g/cm3 0.95g/cm3
Acid value < 6mg(KOH)/g < 6mg(KOH)/g < 6mg(KOH)/g
Amine value < 3mg(HCL)/g < 3mg(HCL)/g < 3mg(HCL)/g
Weight/per 25kg/sack paper bag 25kg/sack paper bag 25kg/sack paper bag
Model 3120M 3200M 3150M

Material PO PO PO
Appearance Ivory-white, non-transparen, pellet Ivory-white, non-transparen, pellet Ivory-white, non-transparen, pellet
Hardness / 45D /
Viscosity 15000cps~20000cps/200℃ 16000cps~18000cps/230℃ 15000cps~25000cps/200℃
Melting point 115℃~125℃ 190℃~200℃ 145℃~155℃
Operation temperature 180℃~200℃ 240℃~250℃ 210℃~230℃
Glass transition temperature -15℃ -20℃ -15℃
Melting index 36g~45g/10min/180℃ 50g~70g/10min/200℃ 36g~45g/10min/180℃
Curing speed 8s~10s 2s~5s 5s~8s
Crystallization rate 4h~6h 8s~10s 10min~20min
Density 1.25g/cm3 1.25g/cm3 1.25g/cm3
Weight/per bag 25kg/sack paper bag 25kg/sack paper bag 25kg/sack paper bag
Model 8120M 8121M 8122M

Material PA PA PA
Appearance Buff, transparent, pellet Buff, transparent, pellet Buff, transparent, pellet
Hardness / / /
Viscosity 1800cps~3500cps/200℃ 2000cps~4000cps/200℃ 2000cps~4000cps/200℃
Softening point 115℃~125℃ 115℃~125℃ 115℃~125℃
Operation temperature 160℃~180℃ 180℃~200℃ 170℃~190℃
Glass transition temperature 0℃ -5℃ -8℃
Curing speed 3s~5s 4s~8s 3s~5s
Density 0.95g/cm3 0.95g/cm3 0.95g/cm3
Acid value < 7mg(KOH)/g < 7mg(KOH)/g < 6mg(KOH)/g
Amine value < 3mg(HCL)/g < 3mg(HCL)/g < 6mg(HCL)/g
Weight/per 25kg/sack paper bag 25kg/sack paper bag 25kg/sack paper bag
Model 8115M 8142GM 8150M
Material PA PA PA
Appearance Buff, transparent, pellet Buff, transparent, pellet Buff, transparent, pellet
Viscosity 1500~2500cps/200℃ 2000cps~4000cps/200℃ 2800cps~4000cps/200℃
Softening point 10±3℃ / /
Tensile strength ≥3.4MPa / /
Elongation ≥57% / /
Low temperature flexibility ≤-10℃ / /
Shore hardness 45±5D / /
Melting point / 135℃~145℃ 145℃~155℃
Operation temperature / 170℃~190℃ 180℃~200℃
Glass transition temperature / -8℃ 0℃
Curing speed 3-9s 3s~5s 3s~5s
Density 0.96±0.03g/cm³ 0.95g/cm3 0.95g/cm3
Acid value ＜10mg (KOH)/g < 6mg(KOH)/g < 6mg(KOH)/g
Amine value ＜3mg(KOH)/g < 3mg(HCL)/g < 3mg(HCL)/g
Weight/per 25kg/sack paper bag 25kg/sack paper bag 25kg/sack paper bag

3. Others
Besides hot melt adhesive sticks and pellets, SUNTIP can also provide adhesive film, block adhesives and so on. We can also adjust our formula according to your demands.
