Shoes Making (hot melt adhesive for insole bonding, shoe tongue fixing)
Shoes Making (hot melt adhesive for insole bonding, shoe tongue fixing)
SUNTIP's hot melt adhesives are widely used in the production of leather shoes, work shoes, mountaineering shoes, safety shoes, athletic shoes and so on. Our adhesives are designed and processed for maximum durability, a goal achieved through adjustments to viscosity and the lack of solvents used in processing.
Users can choose their desired color and properties of the hot melt adhesive according to specific requirements and the fast curing of adhesives make for a reliable bond.
Application
The adhesive can be used for bonding the forepart, heel seat and toe puff of shoes.
The hot melt glue can bond the insole.
The adhesive can be applied for folding leathers or other materials and molding shoes.
Examples

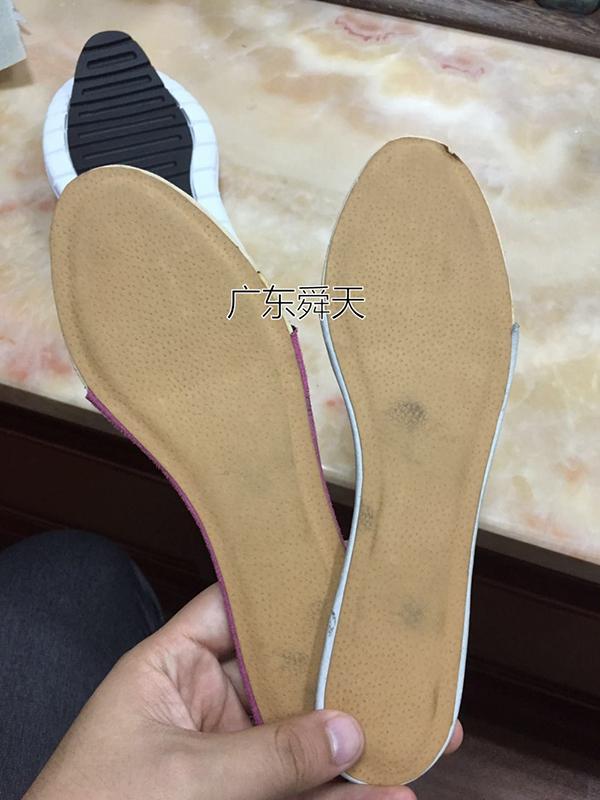

The bonding of a shoe insole

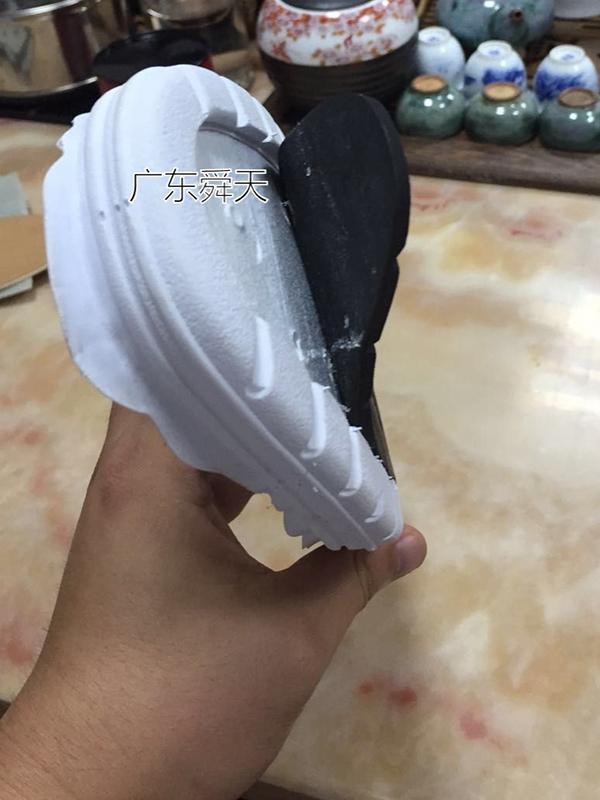

The bonding of a shoe sole
The bonding of a heel seat
The bonding of the forepart and heel seat of a shoe
Recommended Products
1. Hot melt adhesive strip

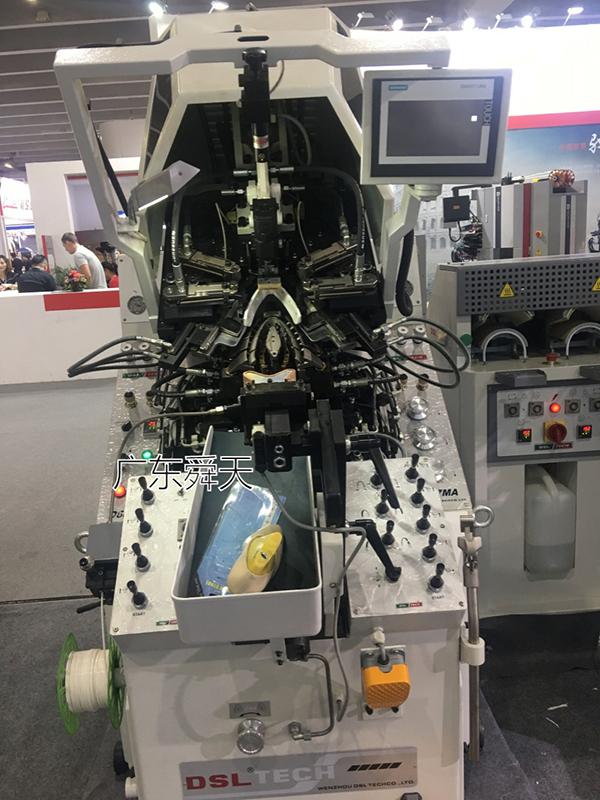

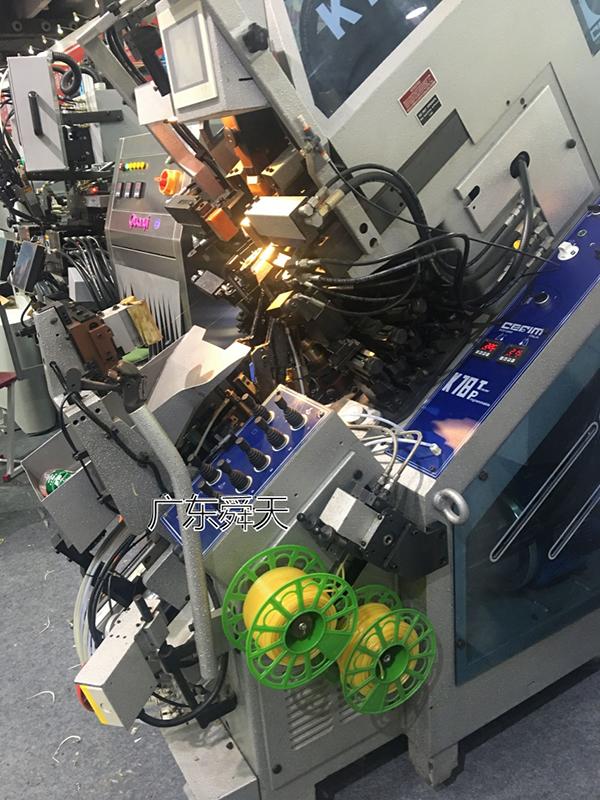

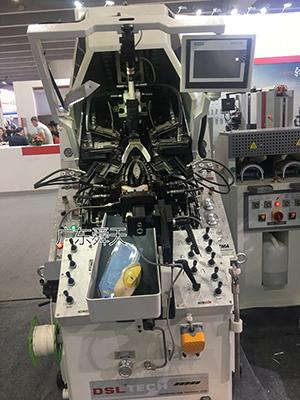

We design hot melt adhesive strip because of the active demands of bonding forepart, heel seat and toe puff for shoe production. They can be directly used in toe lasting machines, heel seat last machines, toe-puff molding machines, and so on.
Model
160T glue strip for forepart of shoes
160K glue strip for heel of shoes
112A adhesive for shoe puffs
Appearance
White, non-transparent, strip
Yellow, semi-transparent, strip
yellow figure 8
Viscosity
12000cps~20000cps/200℃
6500cps~8500cps/200℃
2000cps~3000cps/200℃
Softening point
165℃~167℃
155℃~165℃
110℃~120℃
Operation temperature
210℃~240℃
220℃~260℃
150℃~210℃
Glass transition temperature
-5℃
-5℃
-10℃
Curing speed
3s~5s
3s~5s
5s~10s
Density
1.15g/cm3
0.95g/cm3
0.95g/cm3
Weight/carton
25kg/carton
20kg/carton
30p/carton
Quality guarantee period
8 months
18 months
/
2. Hot melt adhesive pellets
Hot melt adhesive pellets are typically used for bonding folded leather or other materials and molding shoes. They can also applied to bond the insole with the sole of shoes.
Model
8110M-1
8150M
8085M
Appearance
Buff, transparent
Buff, transparent
Yellow, transparent
Viscosity
800cps~1500cps/200℃
2800cps~4000cps/200℃
6000cps~9000cps/200℃
Softening point
105℃~115℃
145℃~155℃
85℃~95℃
Operation temperature
160℃~180℃
180℃~200℃
150℃~180℃
Glass transition temperature
5℃
0℃
-5℃
Curing speed
3s~5s
3s~5s
8s~10s
Density
0.95g/cm3
0.95g/cm3
Acid value
＜6mg(KOH)/g
＜6mg(KOH)/g
Amine value
＜3mg(HCL)/g
＜3mg(HCL)/g
Weight/package
25kg/sack paper bag
25kg/sack paper bag
25kg/sack paper bag
Model
5005M
3120M
5003M-1
Appearance
Yellow, semi-transparent
White, non-transparent, pellet
Buff, semi-transparent
Viscosity
3500cps~4500cps/180℃
15000cps~20000cps/200℃
3500cps~4500cps/180℃
Softening point
75℃~85℃
115℃~125℃
75℃~85℃
Operation temperature
160℃~180℃
180℃~200℃
160℃~180℃
Glass transition Ivory-white, non-transparent temperature
